60 Multi Solar Panel Half Piece Double Light Solar Module Wholesale
1. Description
Battery type: single crystal
Number of batteries: 120 (6×20)
Maximum power: 350W
Maximum efficiency: 20.8%
Junction box IP68, 3 diodes
Maximum system voltage: 1000V/1500V DC (IEC)
Operating temperature: -40℃ ~ +85℃
Connector: QC4, MC4, EVO2
Using multi-main grid efficient PERC battery combined with battery cutting technology, the product has higher output power, effectively reduce the cost of single watt system; The product has excellent performance in shielding loss and temperature coefficient. At the same time, the battery cutting technology effectively reduces the risk of hot spot of high-power components, showing better power generation performance and reliability in the system application.
2. Parameter Datas
High Efficiency Solar Panel 530W Single Crystal Solar Panel Photovoltaic Panel
| Product Name | Mono Solar Panels |
| Panel Size | 1997x992x35 mm |
| Cells | 144(6*24) |
| Weight | 22 kg |
| Surface | |
| Coated tempered glass |
| Packing | 66 pcs/pallet |
| Loading in 40'FCL | 726 pcs |
| STC Parameter |
| Max Out Put(Pmax/W) | 370 | 375 | 380 | 385 | 390 |
| VOC(V) | 48.35 | 48.75 | 49.06 | 49.35 | 49.65 |
| ISC(A) | 9.79 | 9.86 | 9.93 | 10 | 10.07 |
| Vmp(V) | 39.88 | 40.11 | 40.34 | 40.57 | 40.8 |
| Imp(A) | 9.28 | 9.35 | 9.42 | 9.49 | 9.56 |
| conversion efficiency(%) | 18.36 | 18.93 | 19.18 | 19.43 | 19.69 |
| Work Temperature | -40℃-85℃ | | | | |
| Max system voltage | 1000/1500V |
3. Advantages
High component conversion efficiency, advanced manufacturing technology
Five main grid line solar cells are used to reduce power loss
The hidden crack and other invisible microscopic crack defects of solar cells are strictly controlled
Adopt advanced low reflection high transmittance glass and advanced battery technology, in the evening, cloudy, cloudy and other low light environment can also play a good performance.
Factory Direct High Efficiency All Black Solar Panel Monocrystalline 400W Mono Solar Panels Cell : A grade solar cells
A Wide Range of Products:Mono-crystalline solar panel and poly(multi)-crystalline solar panel(depending on configurations)
High Reliability:Guaranteed mechanical resistance to severe weather conditions for reliable power output.Compliant with IEC 61215 and IEC61730.Certified by TUV,CE,ISO and etc.
Tight Tolerance:Guaranteed positive tol erance from 0-3% ebsures power ♦output reliability.
Traceability:We provide flash report and embedded bar code ID for each module for complete traceability
A Wide Range of Applications: Independent systems(household,powder supplies for remote areas, remote systems, ete.)and grid-connected photovoltaic power stations(residential,commercial, industrial power supply systems)
Warranty:10-year limited product warranty and 25-year limited power guarantee
4. Application
Monocrystalline Silicon Solar Panel Photovotaic Power Generation Module Household Street Lamp
Solar panels can be used for a wide variety of applications including remote power systems for cabins, telecommunications
equipment, remote sensing, and of course for the production of electricity by residential and commercial solar electric systems.
Use solar energy to power your home and reduce your dependence on the grid

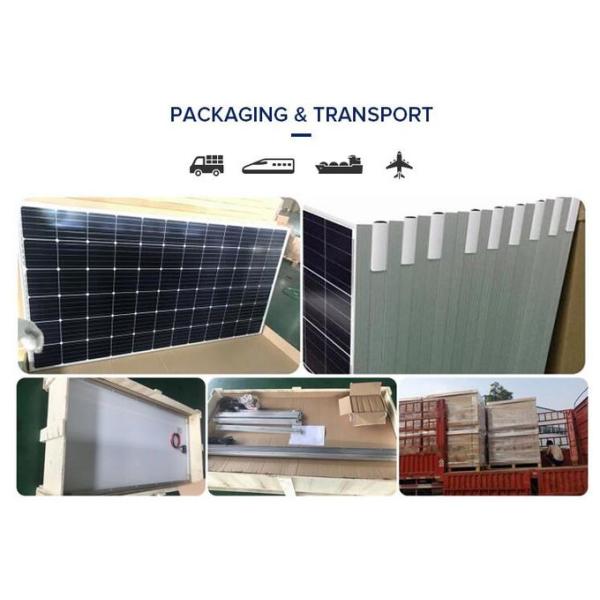

5. Package
PACKAGING SPE CIFIC ATIONS
| Number of modules per pallet | 30 |
| Number of pallets per 40’ container | 22 |
| Packaging box dimensions (L / W / H) | 2135mm / 1110mm / 1190mm |
| Box weight | 745 kg |
6. Principles
A solar cell is a device that responds to light and can convert light energy into electricity. There are many kinds of materials that can produce photovoltaic effect, such as: single crystal silicon, polycrystalline silicon, amorphous silicon, gallium arsenide, indium copper selenide and so on. Their power generation principles are basically the same, and now take crystalline silicon as an example to describe the process of photovoltaic power generation. P-type crystalline silicon can be doped with phosphorus to obtain N-type silicon, forming a P-N junction.
Product Tags:
|
|
380W Camping 6x24 Cell Mono Solar Module 60 Multi Panel Half Piece Double Light Images
|
